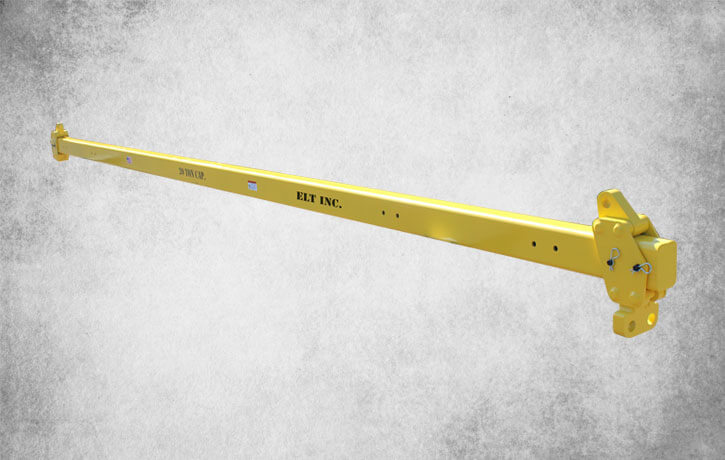

Adjustable Spreader Beams
Model ASB – Standard Quote
Adjustable spreader beams are a versatile lifting solution for several different lifting needs with several sizes in stock. They are an excellent lifting solution for heavier and longer loads, adding stability to complex jobs with multiple lifting points. Adjustable spreader beams can utilize multiple beam construction and be made to fit up to a four-point construction option. Engineered Lifting Technologies offers load testing for all products.
Contact ELT through our online web page or call one of our product experts at 855-800-9568 to find out which adjustable spreader beam would work best for your project.
Click Here for a PDF of our Adjustable Spreader Beam Brochure
What makes ELT’s system for adjustable spreading beams better?
No Tube Cutting
With traditional round tube systems for adjustable spreader bars, adjustability is achieved by cutting the pipe to the desired length. With other adjustable spreader beam systems, it is also important to achieve a square cut to insure proper fitting of the end cap. However, with the ELT spreader beam system, adjustability is achieved by sliding the unique brackets to the desired location on the existing tube.
Easier Drilling
With all systems, holes must be drilled in the tube or pipe when adjusting the length of the spreader. With other systems, it is difficult to achieve the proper orientation of the rigging due to the necessity of laying out and drilling holes on round tubing that has a tendency to roll.
With the ELT adjustable spreader beams system, the brackets can be used as a template to mark the new hole locations. The holes are then drilled on a flat, stable surface, simplifying the process. Another option is to have holes predrilled at our factory when purchasing the system to allow for a wide range of spreader beam lengths.
Better Part Fit
Pipe is sized nominally with variations to both the interior as well as exterior dimensions. This leads to loose fitting end caps with other systems in many cases. However, the exterior dimensions of rectangular tubing are fixed and the only variance between tubes is the wall thickness.
Therefore, the ELT adjustable spreader beams system is engineered to use much closer tolerances because the brackets are interfaced with the controlled peripheral dimension of the tube. Engineered Lifting Technologies offers load testing for all products.
Standard Working Load Limit: 10,000 to 200,000 lbs.
Standard Max Spreader Length: 40 feet
Available Customization:
- Custom sizing
- Four point designs
- Low-stress basket lift design for lifting wind tower blades (B-ASB model)
| Model Number | Capacity (T) | Capacity (lb.) | Max Spread (in) | Minimum Spread (in) | Approx. Max Headroom (in) | Approx. Unit Weight (lb.) |
| ASB-5-20 | 5 | 10,000 | 240 | 72 | 208 | 247 |
| ASB-5-40 | 5 | 10,000 | 480 | 192 | 416 | 1090 |
| ASB-10-20 | 10 | 20,000 | 240 | 60 | 208 | 432 |
| ASB-10-40 | 10 | 20,000 | 480 | 192 | 416 | 1105 |
| ASB-15-20 | 15 | 30,000 | 240 | 60 | 208 | 440 |
| ASB-15-40 | 15 | 30,000 | 480 | 192 | 416 | 1155 |
| ASB-20-20 | 20 | 40,000 | 240 | 60 | 208 | 465 |
| ASB-20-40 | 20 | 40,000 | 480 | 192 | 416 | 1230 |
| ASB-30-20 | 30 | 60,000 | 240 | 60 | 208 | 690 |
| ASB-30-40 | 30 | 60,000 | 480 | 192 | 416 | 3280 |
| ASB-40-20 | 40 | 80,000 | 240 | 60 | 208 | 753 |
| ASB-40-40 | 40 | 80,000 | 480 | 192 | 416 | 3060 |
| ASB-50-20 | 50 | 100,000 | 240 | 60 | 208 | 1122 |
| ASB-50-40 | 50 | 100,000 | 480 | 192 | 416 | 3190 |
| ASB-60-20 | 60 | 120,000 | 240 | 60 | 208 | 1127 |
| ASB-60-40 | 60 | 120,000 | 480 | 192 | 416 | 3520 |
| ASB-80-20 | 80 | 160,000 | 240 | 60 | 208 | 1622 |
| ASB-80-40 | 80 | 160,000 | 480 | 192 | 416 | 4026 |
| ASB-100-20 | 100 | 200,000 | 240 | 60 | 208 | 1621 |
| ASB-100-40 | 100 | 200,000 | 480 | 192 | 416 | 5110 |
