Forklift Hook Beams
Model LHB – Standard Quote
Forklift Beams

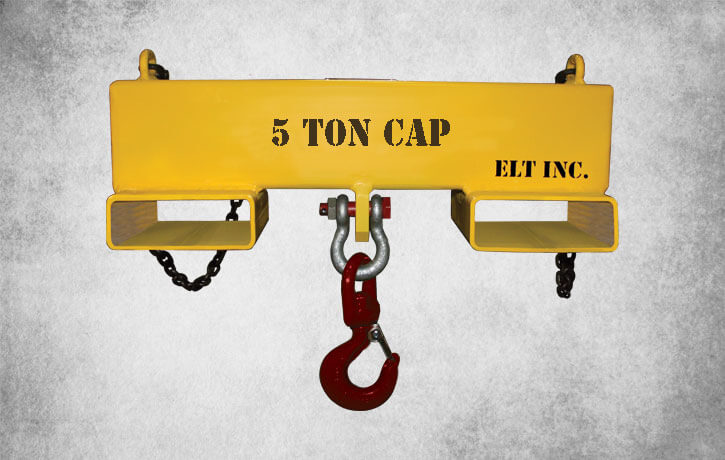

These units are convenient for picking up those items not accessible by normal forklift operation. Included are two attachment chains approximately 4 foot long to secure the unit to the fork truck. Also included for lifting are bolt type shackles and swivel hooks with latches. These are designed, manufactured, tested and tagged to comply with lifting regulations and painted safety yellow. ELT offers load testing on all products.
The below chart are our forklift beam product specifications.
| Model Number | Capacity | Fork Tube Height (in) | Fork Tube Width (in) | Fork Tube Spacing (in) | Total Height (in) | Outside Width (in) | Shackle Rating | Hook Rating | Approx. Unit Weight (lb.) | Documents |
| LHB2 | 2T | 2-1/2 | 7-1/2 | 16 | 16 | 24 | 2t | 2t | 60 | LHB2.pdf |
| LHB3 | 3T | 2-1/2 | 7-1/2 | 18 | 17-3/8 | 26 | 3.25t | 3t | 65 | LHB3.pdf |
| LHB5 | 5T | 2-1/2 | 7-1/2 | 20 | 19-7/16 | 28 | 4.75t | 5t | 80 | LHB5.pdf |
| LHB6 | 6T | 2-1/2 | 7-1/2 | 22 | 24-1/2 | 30 | 6.5t | 7t | 95 | LHB6.pdf |
| LHB8 | 8T | 3-1/2 | 7-1/2 | 22 | 27-7/16 | 30 | 8.5t | 11t | 108 | LHB8.pdf |
| LHB10 | 10T | 3-1/2 | 7-1/2 | 22 | 28 | 30 | 9.5t | 11t | 135 | LHB10.pdf |
| LHB15 | 15T | 5-1/2 | 11-1/2 | 36-1/2 | 20-11/16 | 49 | N/A | 15t | 261 | LHB15.pdf |
| LHB22 | 22T | 5-1/2 | 11-1/2 | 36-1/2 | 26-5/16 | 49 | N/A | 120t | 355 | LHB22.pdf |
