ELT’s c-hooks are available in a variety of styles that offer crane hook versatility in the way you handle your lifting project. Built tough from ELT, our coil hooks are designed for long-lasting rugged jobsite usage and can be made to exact customer specifications.

Effective coil handling will address lifting efficiency and varied production needs. Lifting coils of sheet steel into a production line as quickly and safely as possible will ensure overall production efficiency and safety. Maneuvering coils within narrow clearances can be done easily with ELT’s coil handling and lifting equipment. ELT also offers load testing for all products.

QUOTE FOR STANDARD

QUOTE FOR CUSTOM

Close Stacking Coil Hook

The Close Stacking Coil Hook (CSC) has a shorter upper arm crane hook which gives the lifter the ability to handle coils of various widths that are flush against a vertical surface.

Integrated lifting bail saves headroom and minimizes inspection normally associated with welded lifting bails.
High strength alloy steel reduces the physical size of the lift arm allowing movement into confined areas for direct crane loading and unloading.
All lifters are proof tested exceeding ANSI/ASME B30.20 standards and a test certificate is issued. Also painted safety yellow and clearly marked on both sides with rated capacity to conform to OSHA standards.

CSC Specifications (PDF format)

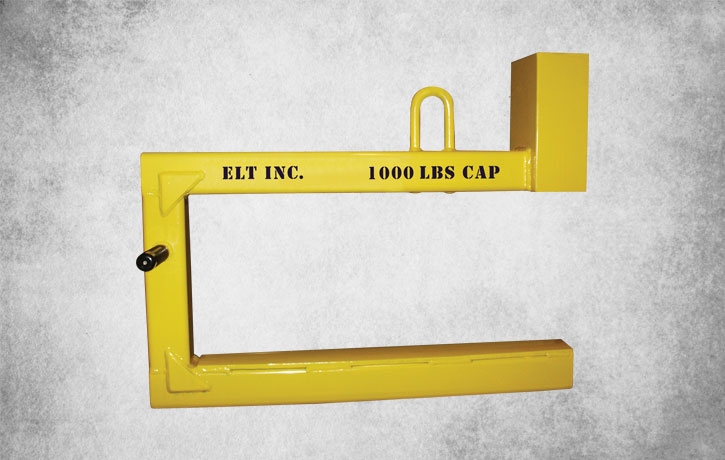

Slit Coil C-Hook

The Slit Coil Coil Hook (SCC) has a longer lift arm which allows the crane hook lifter to lift multiple coils. The combined widths of the coils are equal to the maximum coil width of the lifter.

The Slit Coil Coil Hook has a longer lift arm allowing the unit to carry multiple coils equal in size to the maximum coil width.
Integrated lifting bail saves headroom and minimizes inspection normally associated with welded lifting bails.
High strength alloy steel reduces the physical size of the lift arm allowing movement into confined areas for direct crane loading and unloading.
All lifters are proof tested exceeding ANSI/ASME B30.20 standards and a test certificate is issued. Also painted safety yellow and clearly marked on both sides with rated capacity to conform to OSHA standard

SCC Specifications (PDF format)

C-Hook Application Information:

Radius in corners reduces stress concentrations in critical areas without interfering with the object being lifted.
Integral crane hook lift loop reduces headroom and requires less maintenance than conventional welded lift loops.
Arc top better suits the contour of the ID of a coil which prevents sharp edges from damaging the product.
Guide handles allow the lifter to be easily maneuvered.
Counterweight balances and hangs the lifter, both empty and loaded.
Optional urethane bumpers can be added to provide additional protection.

Standard Working Load Limit: 1,000 to 100,000 coil lbs.
Standard Coil Widths: from 24 to 84 inches
Standard Vertical Clearance: 16 to 44 inches
For custom sizes and capacities, please request a quote
